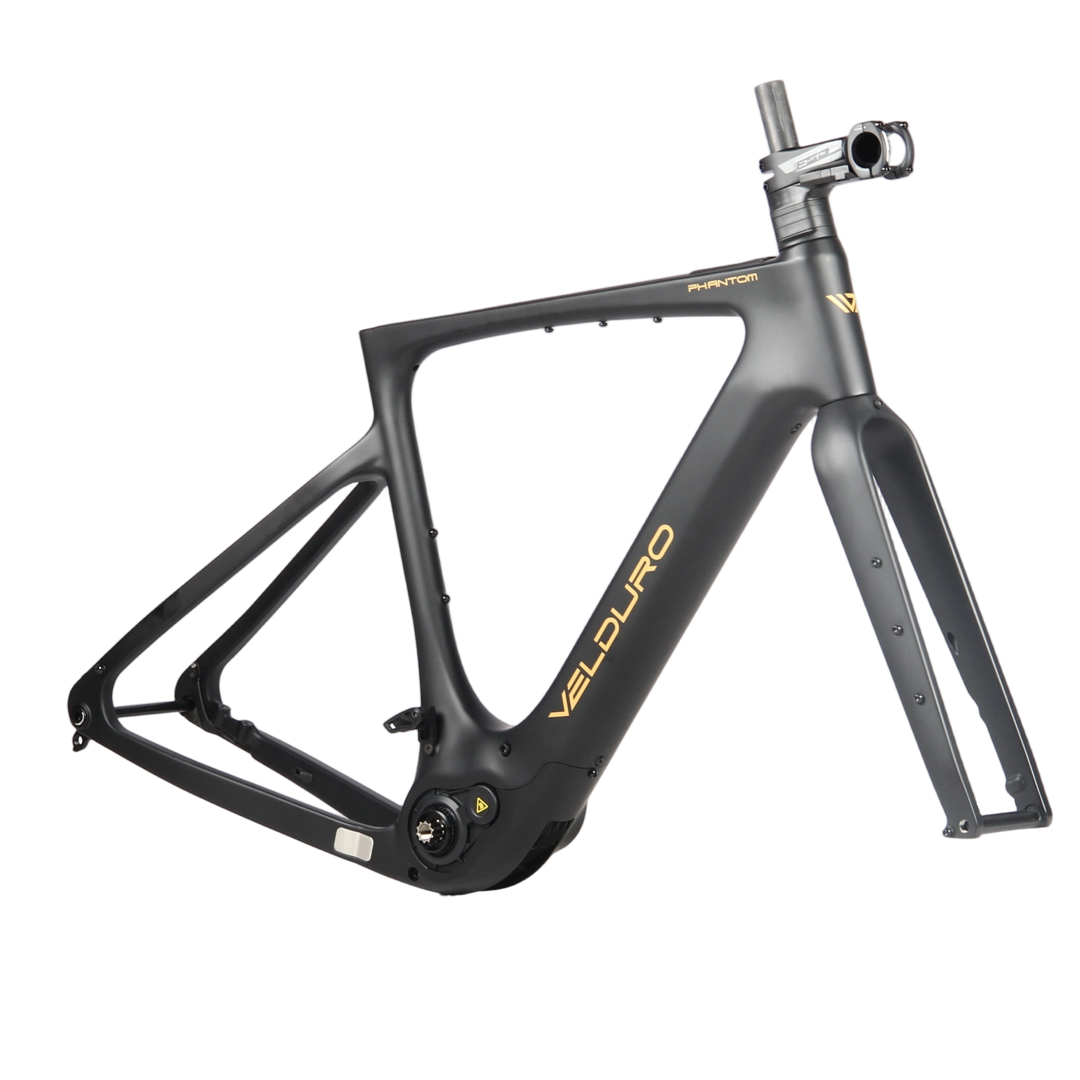

PHANTOM FRAME
PHANTOM FRAME
£3,500.00
Frame Size

Our Gold Award-winning e-gravel carbon frame is available as a frame-only option. Build your own ultra-lightweight Avinox-powered gravel or flat bar adventure bike.

To secure your Velduro electric bike now, please select your frame choice above and choose whether you wish to place a deposit or make full payment.

Deposit payments: The balance will be required in full 4 weeks prior to delivery. If you have opted to pay a deposit you will receive a message before the balance is required notifying you of the anticipated delivery date of your bike frame.

Secure your Velduro Phantom today: Bikes will be delivered in Spring 2026 and volumes are limited. Secure your Avinox-powered Velduro Electric Bike today.

Specifications
Whats included with the frame?
  • Phantom carbon frame
  • Phantom carbon fork
  • Phantom motor cover
  • 12X142 rear thru axle
  • UDH Hanger Bottle cage screws
  • Seatpost lock-Dji avinox M1 motor 250W 105Nm
  • Custom chainwheel and spider
  • Dji avinox isis crank 155mm
  • Dji avinox battery 36V 600Wh
  • Dji DP100 2inch smart screen
  • Dji BC100 bluetooth remoter X2
  • Dji speed sensor
  • Dji 4A 168Wh charger
  • Phantom charge port cover
Handle Bar, Fork & Saddle
  • Internal cable routing headset dia 52mm for both top/bottom
  • Drop bar and flat bar both suitable
  • Suspension gravel fork suitable, RS-Rudy/ Fox-32TC / SR GVX etc
  • Circle seatpost dia 27.2mm, frame insert depth 250mm-dropper and manual
  • Dropper suitable, Dia 27.2mn
  • Dropper cable length 1100mm
Wheels & Tyres
  • Front hub: depends on the fork, normally
    12x100mm
  • Rear hub: 12x142mm thru-axle
  • Rims: 700 Front tyre: 700x45C as suggest, max to 50C
  • Rear tire: 700x45C as suggest, max to 50C
Drive Chain
  • Chainwheel: 104BCD, up to 44T
  • Crank: length up to 165mm, 0 offset suitable
  • UDH deralleur suitable,up to 13 speed1x shifting only
  • Shimano and SRAM shift both fit
  • E-shift and manual shift both fit
  • Manual shift cable length 1650mm
Phantom Frame-Only Manual

Download Phantom Frame-Only Manual
Prefer to buy a full build?

If you don't have time, or simply cannot wait to get riding your new Velduro Phantom, you can buy a fully built bike right here

Electric Bike

Extraordinary Performance, Everyday

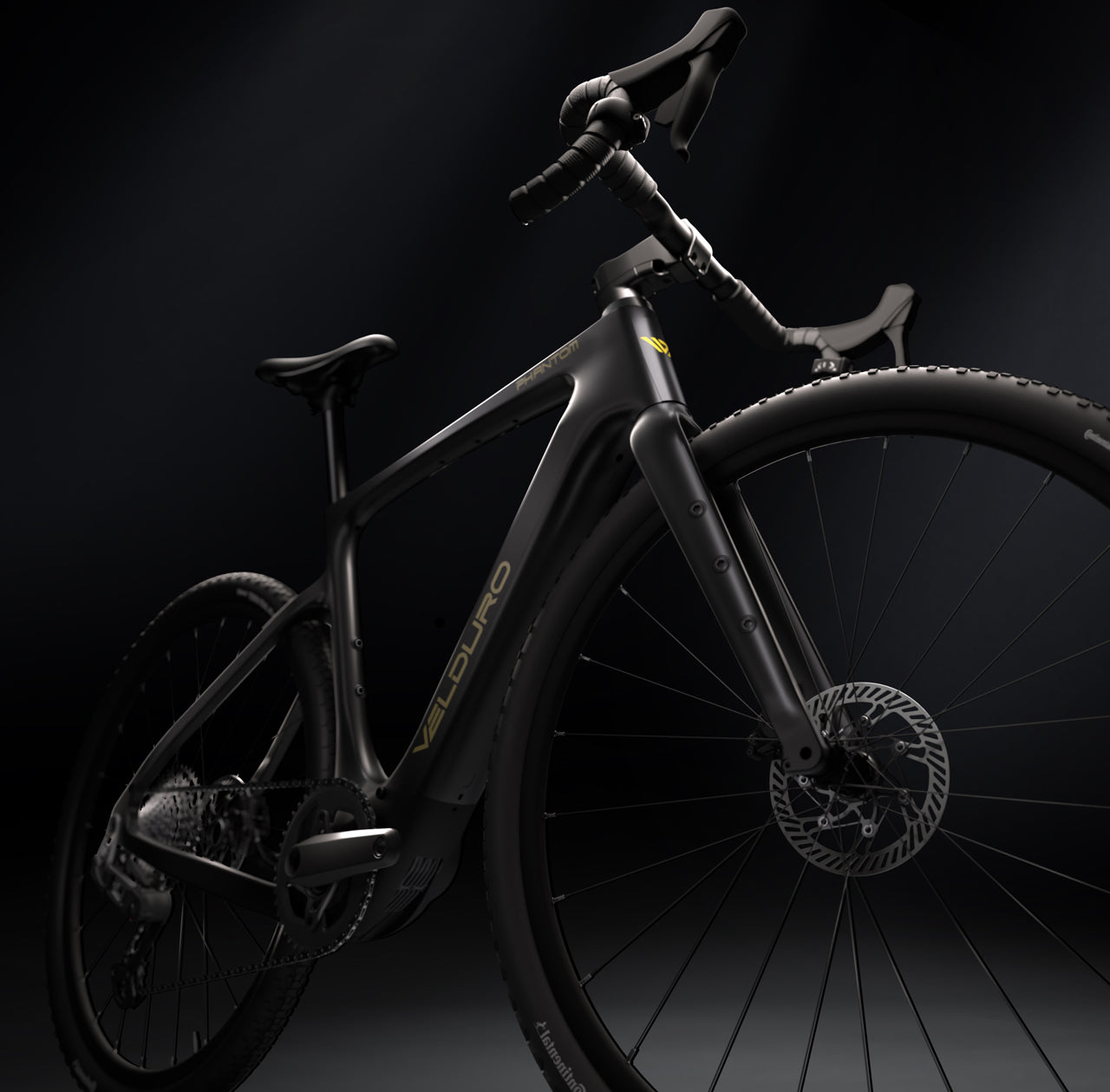

Velduro Phantom

Carbon Fibre Monocoque Frame

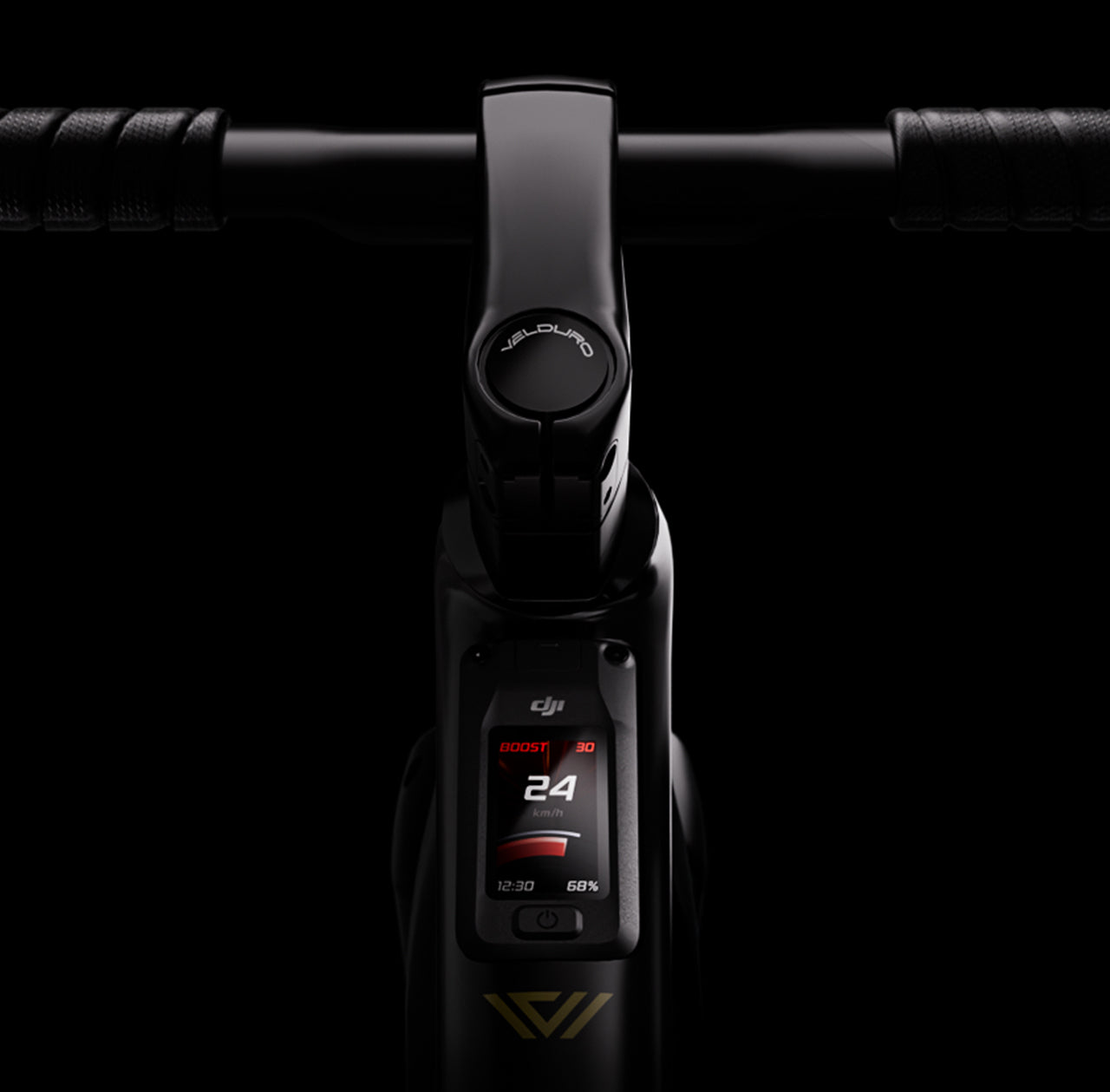

Velduro Phantom Display

Crystal Clear Avinox Display

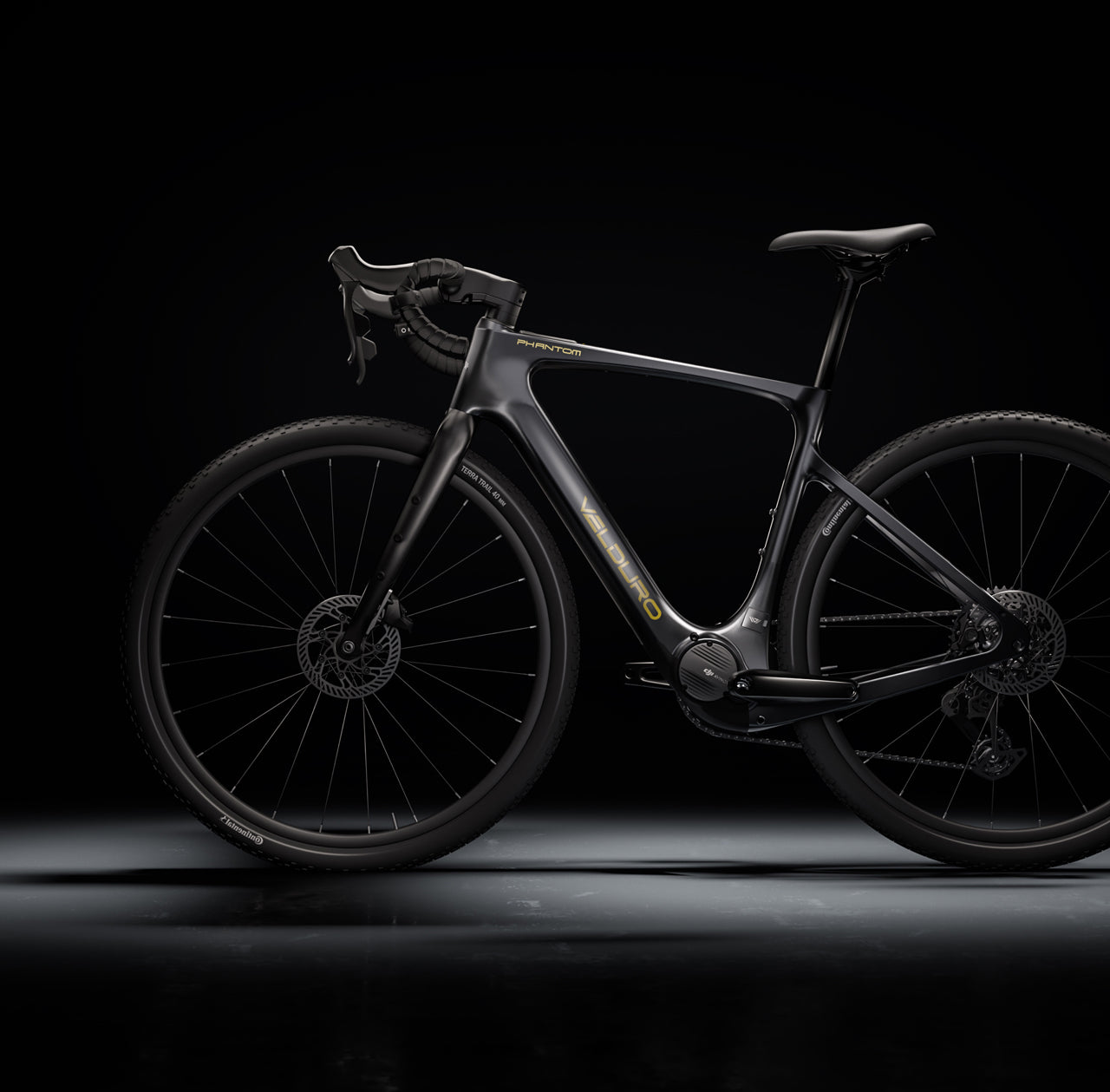

Velduro Black Phantom

Industry Leading Avinox Motor
