Velduro Rogue R | Ultimate Avinox-Powered MX Enduro EMTB

£9,000.00

		S	M	L	XL
A	Eff. Seattube Length (mm)	390	410	430	465
B	Headtube Angle (°)	63.5	63.5	63.5	63.5
C	Eff. Toptube Length (mm)	573.6	599.6	623.9	652
D	Reach (mm)	440	466	485	515
E	Act. Seattube Angle (°)	75.5	75.5	75.5	75.5
F	Seattube Offset (mm)	30	30	30	30
G	Eff. Seattube Angle (°)	78.1	78.1	78	77.9
H	Chainstay Length (mm)	440	440	440	440
I	BB Drop at Rear Wheel (mm)	12	12	12	12
J	BB Drop at Front Wheel (mm)	31	31	31	31
K	Headtube Length (mm)	110	110	120	125
L	Axle to Crown (mm)	584	584	584	584
M	Fork Offset (mm)	44	44	44	44
N	Trail (mm)	140.1	140.1	140.1	140.1
O	Stack (mm)	632.5	632.5	641.4	645.9
P	Wheelbase (mm)	1230	1265	1300	1335
Recommended Height (CM)		160-172	172-182	180-188	185-195

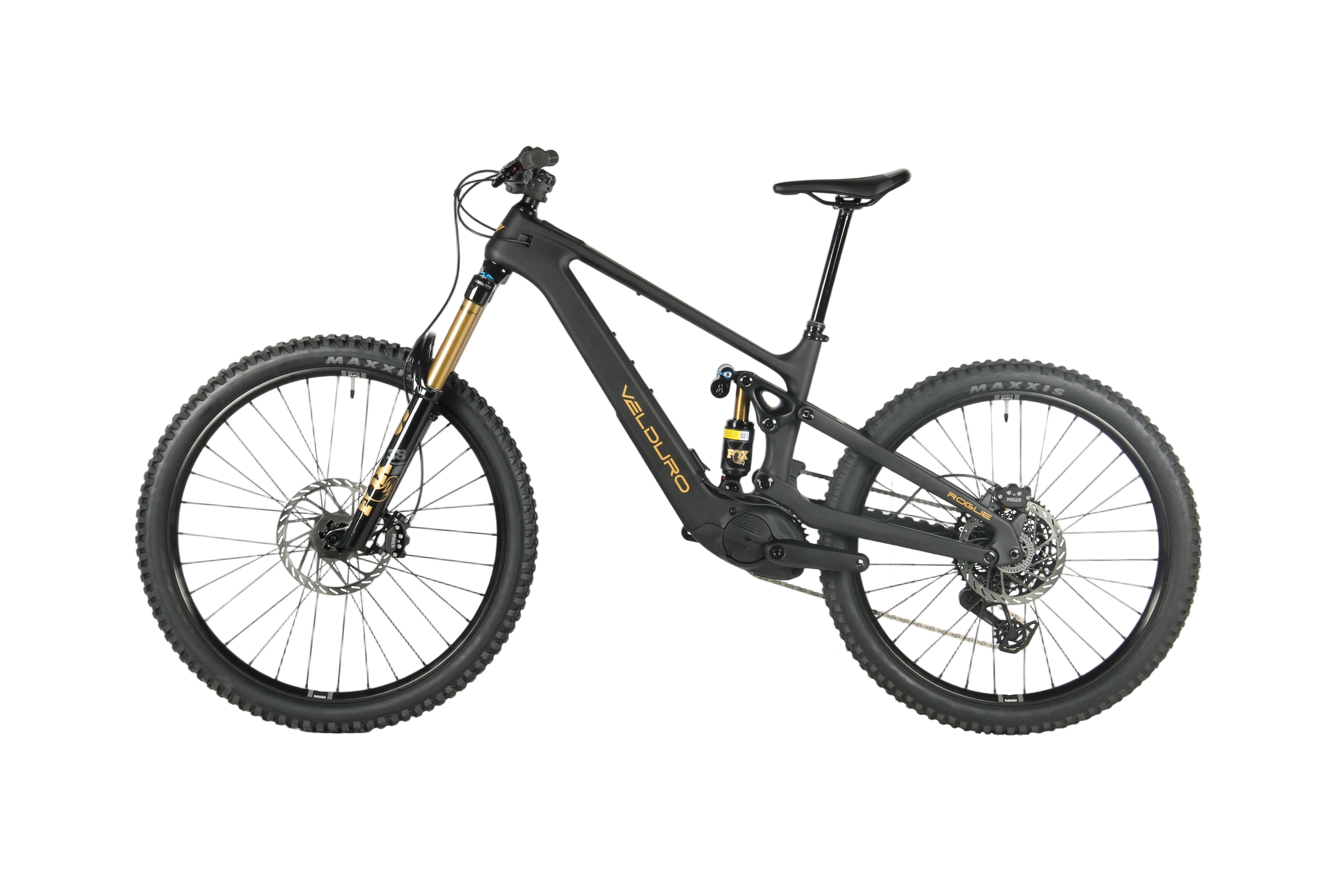

Meet the Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate DJI-powered enduro EMTB!

Deposit payments: The balance will be required in full 4 weeks prior to delivery. If you have opted to pay a deposit you will receive a message before the balance is required notifying you of the anticipated delivery date of your bike frame.

Secure your Velduro Rogue today: Bikes will be delivered in Spring 2026 and volumes are limited. Secure your Avinox-powered Velduro Electric Bike today.

Specifications

Carbon fibre enduro frame:

165mm rear travel, up to 172mm,
mid-pivot
battery integrated
rear wheel flip chip
shock position flip chip
inner cable routing
Boost 12x148mm
16T idler, with oversize bearings

Headset: Internal alignment
Saddle: Fizik Terra Aidon X5
Seat post lever: ONEUP Dropper lever V3.1
Seat Post Clamp:ONEUP KIT 22.2
Dropper:ONEUP V3 mechanical Dia.31.6
S: 180mm travel, M/L: 210mm travel,
XL: 240mm travel
Handlebar: OneUp, alloy, 800L, 35R.
Stem: ONEUP Stem 42mm forged
Grips: Velduro: thick grips - Black.

Brakes:Sram Mavan Silver 4- Pistion hydraulic brake
Disc: Sram HS2 disc front 220 , rear 200mm
Pedal: Riders Choice
SHIFT LEVER:Sram AXS pod controller
REAR DERAILLEUR: Sram AXS GX eagle transmission derailleur w/ power cable
CRANKSET: Avinox SL crank 155mm
CASSETTE: Sram XS-1275 10-52T
CHAIN :Sram GX Flat top Chain
CHAINWHEEL Sram EMTB Eagle 34T

Wheel set: Velduro e-Enduro carbon, EC-30
Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h,
straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h,
straight-pull, 6-bolt, 78T
Spokes: Sapim e-light straight pull
Rim: Carbon,F 29’/R 27.5’, 30mm internal width
Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
Your Rogue is tubeless ready, but comes with tube.

Motor: AVINOX
Battery: 800 WH
Charger: AVINOX 36V 4A
Display: AVINOX DP100

Fox 38 F-S 2026, 29 inch, 170mm,
Grip X2, 15X110mm
Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)

Precision Engineered Performance

Agile Variable Geometry

Crystal Clear Avinox Display

Fast Charging 800Wh Battery
